DC Charging
PEVC3108E-SBTS 22 kW AC + 60 kW DC

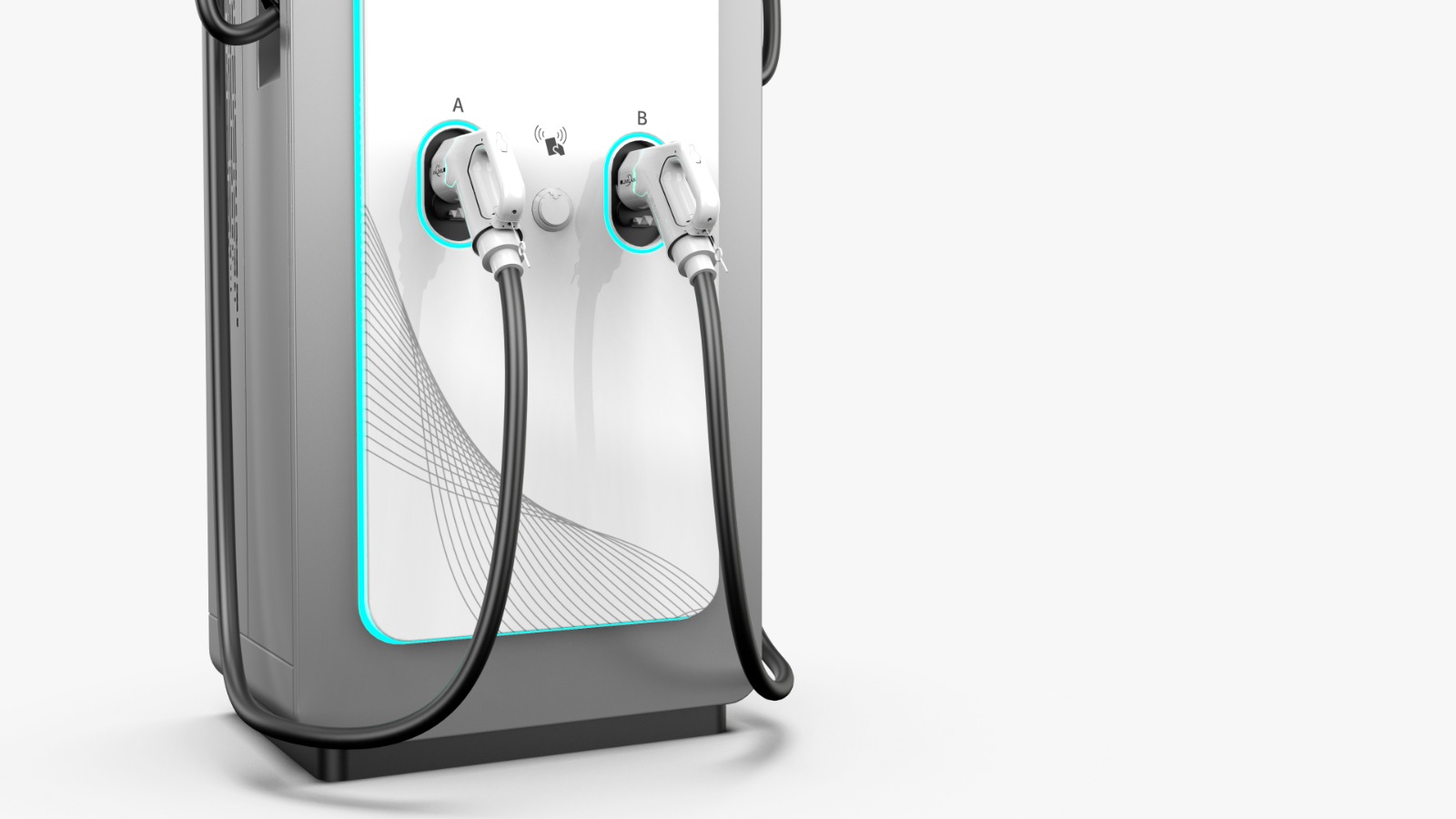

The PEVC3108E-SBTS is a versatile multi-standard charging station designed for public, commercial, fleet, and highway locations. It combines a 60 kW DC fast charging output with CCS2 and CHAdeMO connectors and a 22 kW AC Type 2 charging option, providing flexible charging capabilities for different vehicle types and site requirements.
Power Output
60 kW
Charging Points
3
Connectors
CCS2 · CHAdeMO · Type2
Protocol
OCPP 2.0.1
Technical Specifications
Power range
22 kW AC + 60 kW DC
Maximum DC output power
60 kW
Power configuration
22 kW AC + 60 kW DC / 60 kW DC
Output voltage range
150 Vdc – 1000 Vdc
Maximum DC output current
125–200 A
DC connectors
CCS2 + CHAdeMO
Optional AC interface
Type 2, up to 22 kW
Charging management
Smart dynamic power allocation
Installation
Indoor and outdoor
Mounting
Floor mounted
Protection rating
IP55
Impact resistance
IK10
Operating temperature
−30°C to +60°C
Efficiency
96%
Display
10-inch TFT color touchscreen
Communication
OCPP 1.6J
Network
Ethernet 10/100, 4G, Wi-Fi, CAN, RS-232, RS-485
RFID
ISO/IEC 14443, MIFARE Classic, NFC 13.56 MHz
Dimensions
1750 × 600 × 240 mm
Weight
260 kg net
Datasheet
