DC Charging
PEVC3106E-SBTS 22 kW AC + 60 kW DC

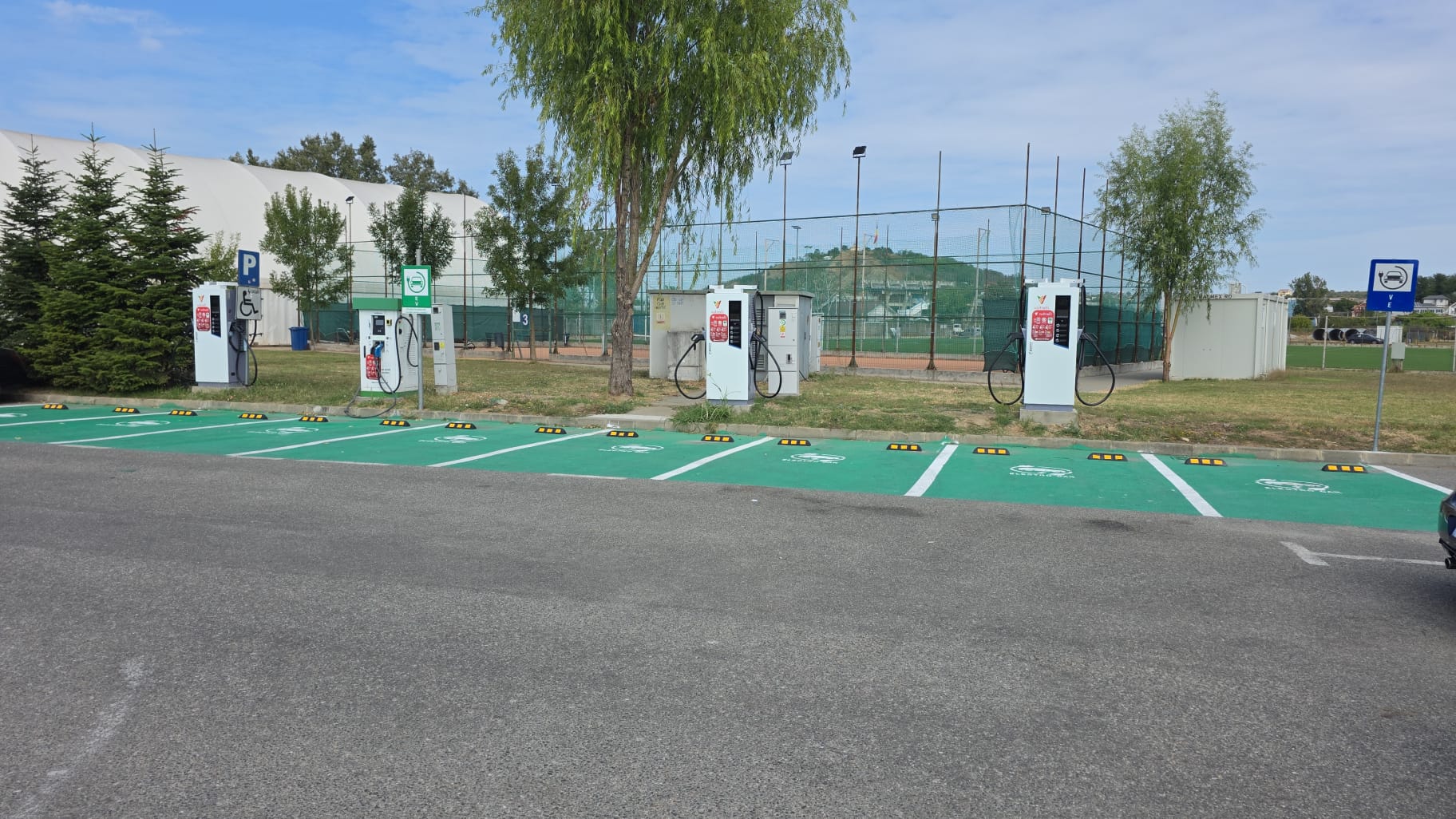

The PEVC3106E-SBTS is a versatile DC fast charging solution designed for public, commercial, fleet, and highway charging locations. With a maximum DC charging power of 60 kW, it can be configured with one 60 kW DC output combined with a 22 kW AC charging point, providing flexible charging options for different site requirements.
Power Output
60 kW
Charging Points
2
Connectors
CCS2 · Type2
Protocol
OCPP 2.0.1
Technical Specifications
Power range
60 kW
Maximum DC output power
60 kW total
Power configuration
60 kW DC + 22 kW AC
Output voltage range
150 Vdc – 1000 Vdc
Maximum DC output current
Up to 125 A
DC connector
CCS Combo 2
AC connector
Type 2
Charging management
Load sharing / smart charging
Installation
Indoor and outdoor
Mounting
Floor / ground mounted
Protection rating
IP55
Impact resistance
IK10
Operating temperature
−30°C to +55°C
Efficiency
≥95%
Display
7-inch touchscreen
Communication
OCPP 1.6J
Network
Ethernet / 4G / 5G / LTE / Wi-Fi
RFID
RFID ISO14443 A/B IEC 14443 + PIN
Dimensions
700 × 240 × 1750 mm
Weight
187 kg net
