DC Charging

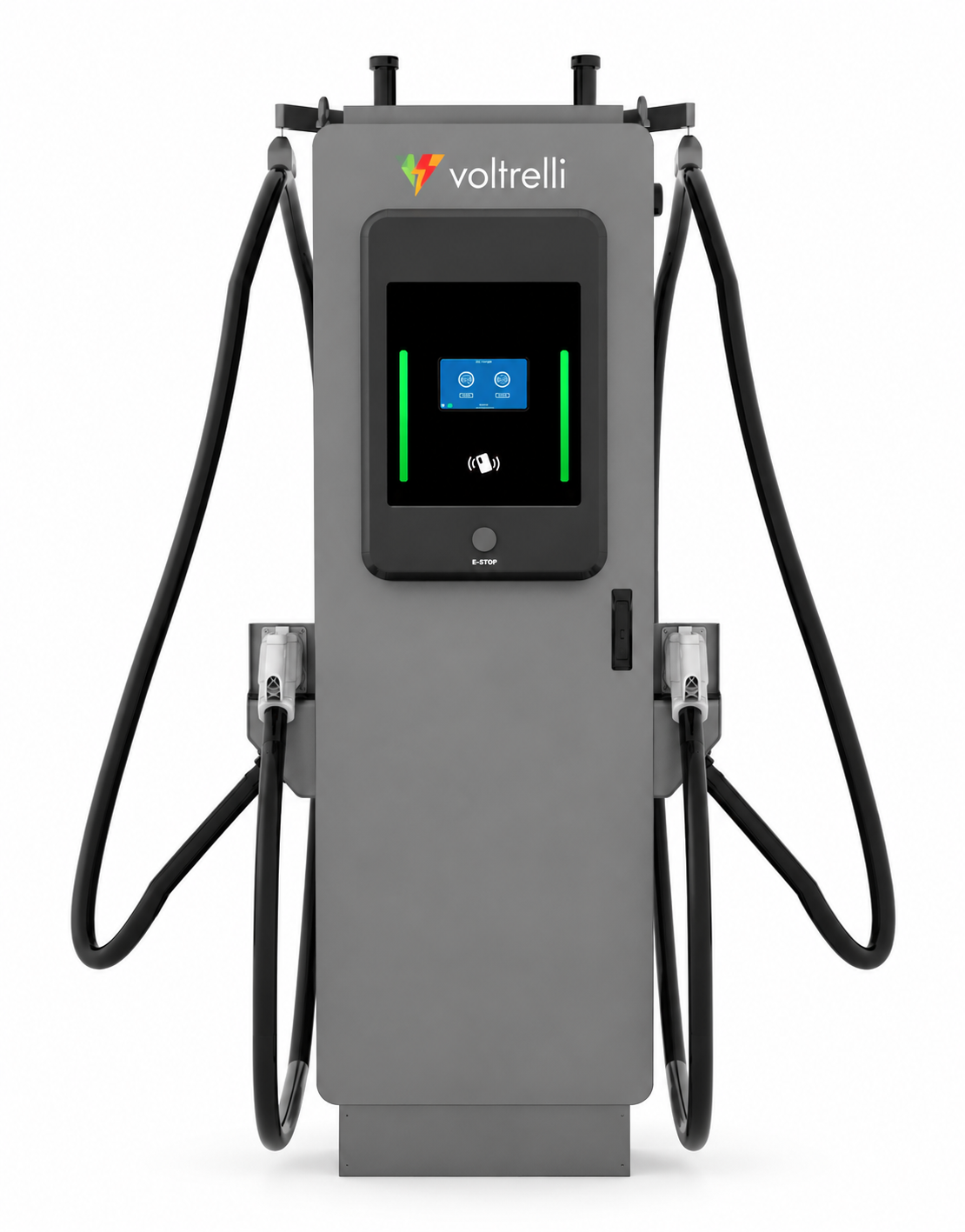

Voltrelli 240 kW
The Voltrelli 240 is a high-power DC fast charger designed for demanding public, commercial, fleet, and highway charging locations. With 240 kW of total power, two CCS2 connectors, and dynamic power sharing, it enables simultaneous charging while efficiently distributing available power between connected vehicles.
Power Output
240 kW
Charging Points
2
Connectors
CCS2
Protocol
OCPP 2.0.1
Technical Specifications
Power range
240 kW
Maximum DC output power
240 kW
Power configuration
240 kW total, dynamic power sharing
Output voltage range
150 Vdc – 1000 Vdc
Maximum DC output current
250 A / 300 A / 380 A
DC connectors
2 × CCS2
Charging management
Dynamic power sharing / simultaneous charging
Installation
Outdoor / indoor
Mounting
Floor standing
Protection rating
IP55
Impact resistance
IK10
Operating temperature
−30°C to +50°C
Efficiency
>95%
Display
10.4-inch color touchscreen
Communication
OCPP 1.6J
Network
Ethernet / 4G
RFID
ISO 14443 A/B, MIFARE, DESFire, NFC
Dimensions
600 × 750 × 1908 mm
Weight
430 kg
