DC Charging

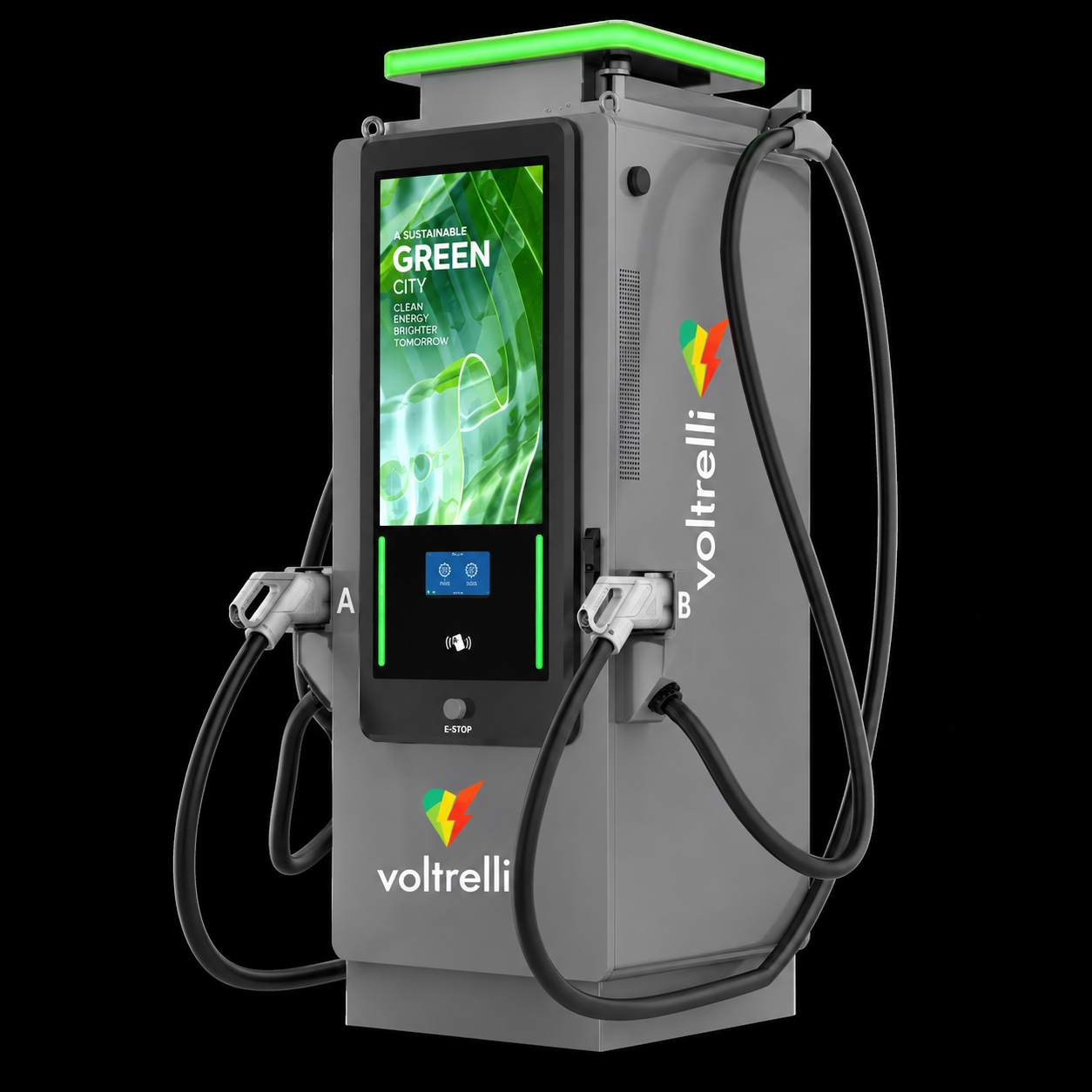

Voltrelli 400 kW
The Voltrelli 400 is an ultra-fast DC charging solution designed for high-demand public, commercial, fleet, and highway charging hubs. With 400 kW of total power, two CCS2 connectors, and dynamic power sharing, it supports simultaneous high-power charging across a wide range of EV battery architectures, including 800 V systems.
Power Output
400 kW
Charging Points
2
Connectors
CCS2
Protocol
OCPP 2.0.1
Technical Specifications
Power range
400 kW
Maximum DC output power
400 kW
Power configuration
400 kW total, dynamic power sharing
Output voltage range
150 Vdc – 1000 Vdc
Maximum DC output current
250 A / 300 A / 380 A / 500 A
DC connectors
2 × CCS2
Charging management
Dynamic power sharing / simultaneous charging
Installation
Outdoor / indoor
Mounting
Floor standing
Protection rating
IP55
Impact resistance
IK10
Operating temperature
−30°C to +50°C
Efficiency
>95 %
Display
7-inch color touchscreen + 32-inch advertising display
Communication
OCPP 1.6J
Network
Ethernet / 4G
RFID
ISO 14443 A/B, MIFARE, DESFire, NFC
Dimensions
950 × 870 × 2200 mm
Weight
560 kg net / 620 kg gross
